Editing Gobo Texture Transparency Settings

A gobo texture is a transparent image resource that displays in the Resource Manager. The transparency settings can be edited after the gobo image has been specified, or at creation.

To edit a created gobo texture’s transparency:

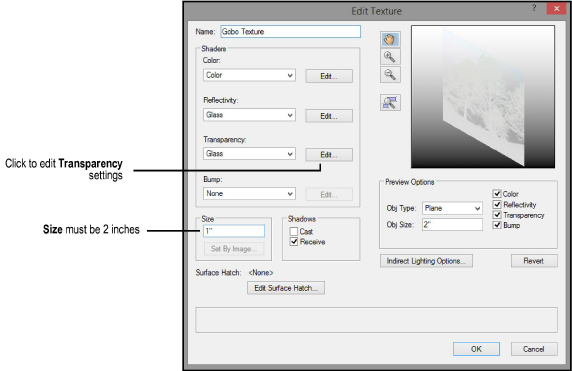

1. From the Resource Manager, right-click on the resource, and select Edit from the context menu to open the Edit Texture dialog box.

2. Edit the Image Transparency settings as described in Éditer des textures et des shaders .

The texture Size must be 2 inches.

~~~~~~~~~~~~~~~~~~~~~~~~~
